에지엔도 나이타이 파일 논문들

J Endod

2019 Feb;45(2):199-204.

doi: 10.1016/j.joen.2018.10.017.

Mechanical Properties of Various Glide Path Preparation Nickel-titanium Rotary Instruments

Joo-Yeong Lee 1 , Sang Won Kwak 1 , Jung-Hong Ha 2 , Ibrahim H Abu-Tahun 3 , Hyeon-Cheol Kim 4



Abstract

Introduction: The aim of this study was to compare the cyclic fatigue, torsional resistance, and bending stiffness of single-file glide path preparation nickel-titanium instruments.

Methods: ProGlider (#16/progressive taper; Dentsply Sirona, Ballaigues, Switzerland), One G (#14/.03; Micro-Mega, Besancon, France), and EdgeGlidePath (#16/progressive taper; Edge Endo, Albuquerque, NM) were tested. For the bending stiffness test, the instrument was bent to a 45° angle along the main axis while 3 mm of the tip was secured. Cyclic fatigue resistance was measured during pecking movement, whereas the file was rotated within a reproducible simulated canal with a 3-mm radius and a 90° angle of curvature. The ultimate torsional strength and toughness were evaluated using a custom device. While tightly holding the end of the file at 3 mm, a rotational load of 2 rpm speed was applied until fracture. The results were analyzed using 1-way analysis of variance and Tukey post hoc comparison. A microscopic inspection was performed on the surface of a separate instrument using a scanning electron microscope.

Results: EdgeGlidePath showed superior cyclic fatigue resistance compared with the other systems. One G showed higher maximum torsional strength than the others. One G showed the largest distortion angle and the highest toughness followed by EdgeGlidePath and ProGlider (P < .05). One G also showed larger bending stiffness than the others, whereas EdgeGlidePath showed a larger residual angle than the others (P < .05).

Conclusions: Conventional wire showed higher toughness and torsional resistance than M-Wire and heat-treated nickel-titanium instruments. However, heat-treated wire showed higher cyclic resistance than conventional wire and M-Wire.

Keywords: Cyclic fatigue resistance; FireWire; M-Wire; glide path file; nickel-titanium rotary file; torsional fracture resistance.

Comparative Study

Braz Oral Res

. 2019;33:e028.

doi: 10.1590/1807-3107bor-2019.vol33.0028. Epub 2019 Apr 11.

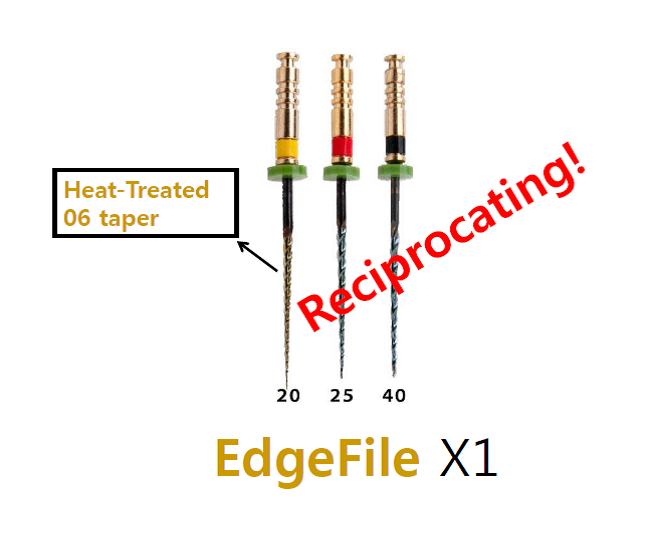

Cyclic fatigue resistance of novel Genius and Edgefile nickel-titanium reciprocating instruments

Carlos Roberto Emerenciano Bueno 1 , Marina Tolomei Sandoval Cury 1 , Ana Maria Veiga Vasques 1 , Gustavo Sivieri-Araújo 1 , Rogério Castilho Jacinto 1 , João Eduardo Gomes-Filho 1 , Luciano Tavares Angelo Cintra 1 , Eloi Dezan-Júnior 1





Abstract

This study aimed to assess the cyclic fatigue resistance of Genius and EdgeFile X1 reciprocating instruments compared with WaveOne Gold Primary. Twenty Genius (Ultradent) 25.04, 20 Genius 30.04, 20 EdgeFile X1 (EdgeEndo) and 20 WaveOne Gold Primary (Dentsply Maillefer) instruments were included in this study and tested in a static cyclic fatigue testing device, which has an artificial stainless steel canal with a 60° angle of curvature and a 5-mm radius of curvature. All instruments were operated in reciprocation mode until fracture occurred. The number of cycles to failure (NCF) was calculated and time to fracture (TF) was recorded in seconds using a digital chronometer. The mean and standard deviations of NCF and TF were calculated for each reciprocating system and the data were subjected to Kruskal-Wallis one-way analysis of variance and to Dunn's test (p < .05) using SigmaPlot software (Systat software, CA, USA). The fractured surfaces of five instruments from each brand were randomly examined and microphotographed by a low-vacuum environmental scanning electron microscopy - SEM (Tabletop Microscope TM3030, Hitachi, Japan) to confirm the cyclic fatigue fracture. EdgeFile exhibited the highest cyclic fatigue resistance, followed by both Genius files (p < .05). Within the limitations of this in vitro study, EdgeFile X1 instruments had significantly higher cyclic fatigue resistance than did Genius and WaveOne Gold Primary instruments. The cyclic fatigue resistance of both Genius files was higher than that of WaveOne Gold Primary.

J Endod

2018 Dec;44(12):1788-1791.

doi: 10.1016/j.joen.2018.09.011. Epub 2018 Nov 1.

Cone-beam Computed Tomographic Analysis of Canal Transportation and Centering Ability of Single-file Systems

Seyed Mohsen Hasheminia 1 , Alireza Farhad 2 , Mahnaz Sheikhi 3 , Parisa Soltani 4 , Seyedeh Sareh Hendi 5 , Masoumeh Ahmadi 6

Abstract

Introduction: The purpose of this study was to compare canal transportation and the centering ability of Reciproc (VDW, Munich, Germany), WaveOne (Dentsply Maillefer, Ballaigues, Switzerland), and EdgeFile (EdgeEndo, Albuquerque, NM) rotary systems using cone-beam computed tomographic imaging.

Methods: Ninety mesiobuccal mandibular first molar uncalcified canals with at least a 19-mm length, a canal curvature of 15°-30° (the Schneider method), and a mature apex were selected. Canals were randomly divided into 3 groups of 30 teeth, and canal preparation with the Reciproc, WaveOne, and EdgeFile systems was performed according to the manufacturers' instructions. Cone-beam computed tomographic images were taken before and after instrumentation in the same position. Apical transportation was calculated in the distances of 2, 3, and 4 mm from the apex. Kruskal-Wallis and Mann-Whitney U tests were used to statistically analyze the data.

Results: The mean canal transportation was significantly lower with EdgeFile (P < .001) followed by the WaveOne rotary system. Moreover, the centering ability of the EdgeFile system was higher than that of the WaveOne and Reciproc systems.

Conclusions: The EdgeFile rotary system showed the lowest transportation in both the mesiodistal and buccolingual directions and the highest centering ability. The Reciproc system showed the highest transportation and the lowest centering ability.

Keywords: EdgeFile; Reciproc; WaveOne; single file; transportation.



J Endod

2018 Mar;44(3):489-495.

doi: 10.1016/j.joen.2017.09.008. Epub 2017 Dec 19.

Micro-computed Tomographic Evaluation of the Shaping Ability of XP-endo Shaper, iRaCe, and EdgeFile Systems in Long Oval-shaped Canals

Marco A Versiani 1 , Kleber K T Carvalho 2 , Jardel F Mazzi-Chaves 2 , Manoel D Sousa-Neto 2



Abstract

Introduction: This study evaluated the shaping ability of the XP-endo Shaper (FKG Dentaire SA, La Chaux-de-Fonds, Switzerland), iRaCe (FKG Dentaire SA), and EdgeFile (EdgeEndo, Albuquerque, NM) systems using micro-computed tomographic (micro-CT) technology.

Methods: Thirty long oval-shaped canals from mandibular incisors were matched anatomically using micro-CT scanning (SkyScan1174v2; Bruker-microCT, Kontich, Belgium) and distributed into 3 groups (n = 10) according to the canal preparation protocol (ie, XP-endo Shaper, iRaCe, and EdgeFile systems). Coregistered images, before and after preparation, were evaluated for morphometric measurements of the volume, surface area, structure model index (SMI), untouched walls, area, perimeter, roundness, and diameter. Data were statistically compared between groups using the 1-way analysis of variance post hoc Tukey test and within groups with the paired sample t test (α = 5%).

Results: Within groups, preparation significantly increased all tested parameters (P < .05). No statistical difference was observed in the mean percentage increase of the volume (〜52%) and surface area (10.8%-14.2%) or the mean percentage of the remaining unprepared canal walls between groups (8.17%-9.83%) (P > .05). The XP-endo Shaper significantly altered the overall geometry of the root canal to a more conical shape (SMI = 2.59) when compared with the other groups (P < .05). After preparation protocols, changes in area, perimeter, roundness, and minor and major diameters of the root canals in the 5 mm of the root apex showed no difference between groups (P > .05).

Conclusions: The XP-endo Shaper, iRaCe, and EdgeFile systems showed a similar shaping ability. Despite the XP-endo Shaper had significantly altered the overall geometry of the root canal to a more conical shape, neither technique was capable of completely preparing the long oval-shaped canals of mandibular incisors.

Materials (Basel)

2020 Dec 21;13(24):5823.

doi: 10.3390/ma13245823.

Shaping and Centering Ability, Cyclic Fatigue Resistance and Fractographic Analysis of Three Thermally Treated NiTi Endodontic Instrument Systems

Saulius Drukteinis 1 , Vytaute Peciuliene 1 , Ruta Bendinskaite 1 , Vilma Brukiene 1 , Rasmute Maneliene 1 , Vygandas Rutkunas 1

Abstract

The better understanding of the clinically important behavioral features of new instrument systems has an important significance for the clinical endodontics. This study aimed to investigate the shaping and centering ability as well as cyclic fatigue resistance of HyFlex CM (CM), HyFlex EDM (EDM) and EdgeFile (EF) thermally treated nickel-titanium (NiTi) endodontic instrument systems. Sixty curved root canals of the mesial roots of mandibular molars were randomly assigned into three groups (n = 20) and shaped using CM, EDM and EF files up to the size 40 and taper 04 of the instruments. µCT scanning of the specimens before and after preparation was performed and the morphometric 2D and 3D parameters were evaluated in the apical, middle and coronal thirds of root canals. In each group, 40.04 instruments (n = 20) were subjected to the cyclic fatigue resistance test in artificial root canals at 37 °C temperature until fractures occurred, and the number of cycles to failure (NCF) was calculated. The fractographic analysis was performed using a scanning electron microscope, evaluating topographic features and surface profiles of the separated instruments. The one-way analysis of variance with post hoc Tuckey's test was used for statistical analysis of the data; the significance level was set at 5%. All systems prepared the comparable percentage of root canal surface with the similar magnitude of canal transportation in all root thirds (p > 0.05), but demonstrated significantly different resistance to cyclic fatigue (p < 0.05). The most resistant to fracture was EF, followed by EDM and CM. The length of the fractured fragments was not significantly different between the groups, and fractographic analysis by SEM detected the typical topographic features of separated thermally treated NiTi instrument surfaces.

Keywords: cyclic fatigue; fractographic analysis; micro-computed tomography; nickel–titanium; root canal shaping; rotary movement; thermal treatment; transportation.

Aust Endod J

2020 Apr;46(1):68-72.

doi: 10.1111/aej.12369. Epub 2019 Aug 13.

Effect of two different temperatures on resistance to cyclic fatigue of one Curve, EdgeFile, HyFlex CM and ProTaper next files

Hüseyin Sinan Topçuoğlu 1 , Gamze Topçuoğlu 2 , Özgür Kafdağ 1 , Hacer Balkaya 3

Affiliations Expand

Abstract

This study compared the cyclic fatigue resistance (CFR) of three controlled memory (CM) nickel-titanium rotary files (One Curve, EdgeFile and HyFlex CM) in comparison with a file (ProTaper Next) made from M-wire nickel-titanium alloy at two different temperatures (room and intracanal) in an s-shaped canal. One hundred and sixty files were tested to determine the CFR of OneCurve, EdgeFile, HyFlex CM and ProTaper Next in an artificial canal at room and at intracanal temperature. The number of cycles to failure was recorded, and data were analysed. At both temperatures, ProTaper Next exhibited the lowest CFR compared with the other files (P < 0.05). At room temperature, there was no difference among the three CM files regarding CFR (P > 0.05). At intracanal temperature, OneCurve and EdgeFile exhibited more CFR than the HyFlex CM (P < 0.05). Testing at intracanal temperature caused a significant decrease in CFR of all tested files compared with testing at room temperature.

Keywords: cyclic fatigue; endodontics; rotary files; s-shaped canal; temperature.



Eur J Dent

2019 Oct;13(4):556-562.

doi: 10.1055/s-0039-1698369. Epub 2019 Dec 31.

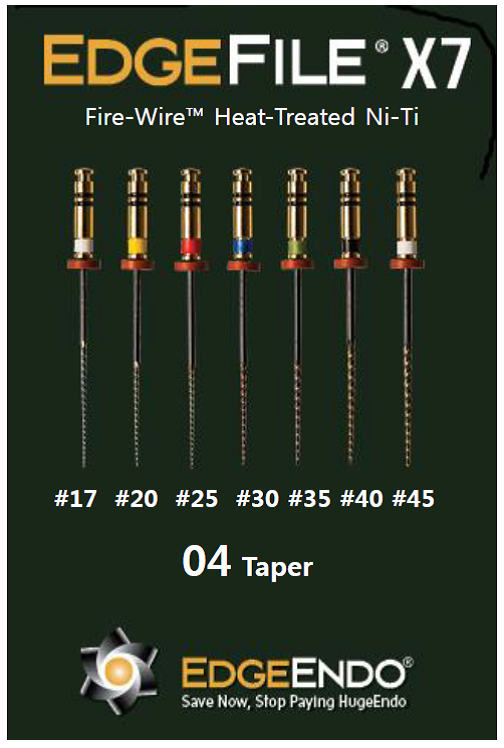

In Vivo Evaluation of Operative Torque Generated by Two Nickel-Titanium Rotary Instruments during Root Canal Preparation

Gianluca Gambarini 1 , Massimo Galli 1 , Marco Seracchiani 1 , Dario Di Nardo 1 , Marco A Versiani 2 , Lucila Piasecki 3 , Luca Testarelli 1



Abstract

Objectives: This in vivo study evaluated the operative torque and preparation time of ProTaper NEXT (Dentsply Maillefer; Ballaigues, Switzerland) and EdgeFile X7 (EdgeEndo; Albuquerque, New Mexico, United States) rotary systems during root canal preparation of maxillary premolars.

Materials and methods: Ten double-rooted maxillary premolars with independent canals were selected. Each canal in each tooth was prepared with one of the rotary systems (n = 10), ProTaper NEXT or EdgeFile X7. The instruments were rotated at 300 rpm with maximum torque set at 2 N.cm using an electric motor (KaVo; Biberach, Germany) that automatically recorded torque values at every 1/10th of a second (ds).

Statistical analysis: Operative torque (N.cm) and preparation time (s) of the first shaping instrument (size 17/.04) of both rotary systems were recorded and statistically compared using the Mann-Whiney U test with a significance level set at 5%.

Results: No instrument exhibited flute deformation or underwent intracanal failure. No differences were found between the instruments regarding the maximum (peak) torque values (p > 0.05). EdgeFile X7 17/.04 required significantly less preparation time (3.75 seconds interquartile range [IQR]: 3.2-9.0) than ProTaper NEXT X1 (15.45 seconds IQR: 8.35-21.1) (p < 0.05). The median operative torque values of ProTaper NEXT X1 (0.26 N.cm; IQR: 0.18-0.49) were significantly higher compared with EdgeFile X7 17/.04 (0.09 N.cm; IQR: 0.05-0.17) (p < 0.05).

Conclusions: Although no difference was found between the median peak torque values of ProTaper NEXT X1 and EdgeFile X7 17/.04 instruments, the operative torque and instrumentation time results were impacted by their different designs and alloys during clinical preparation of root canals.
